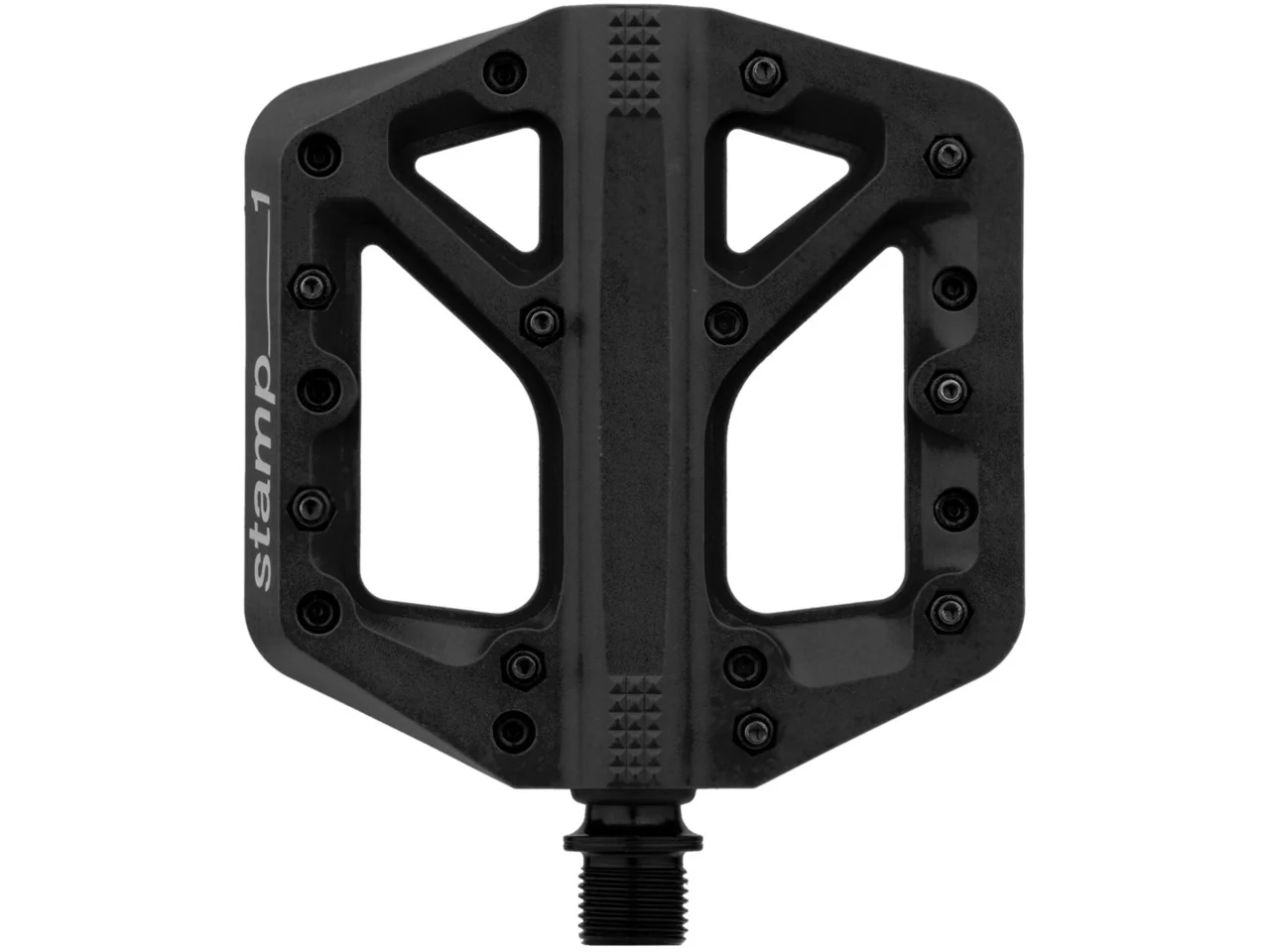

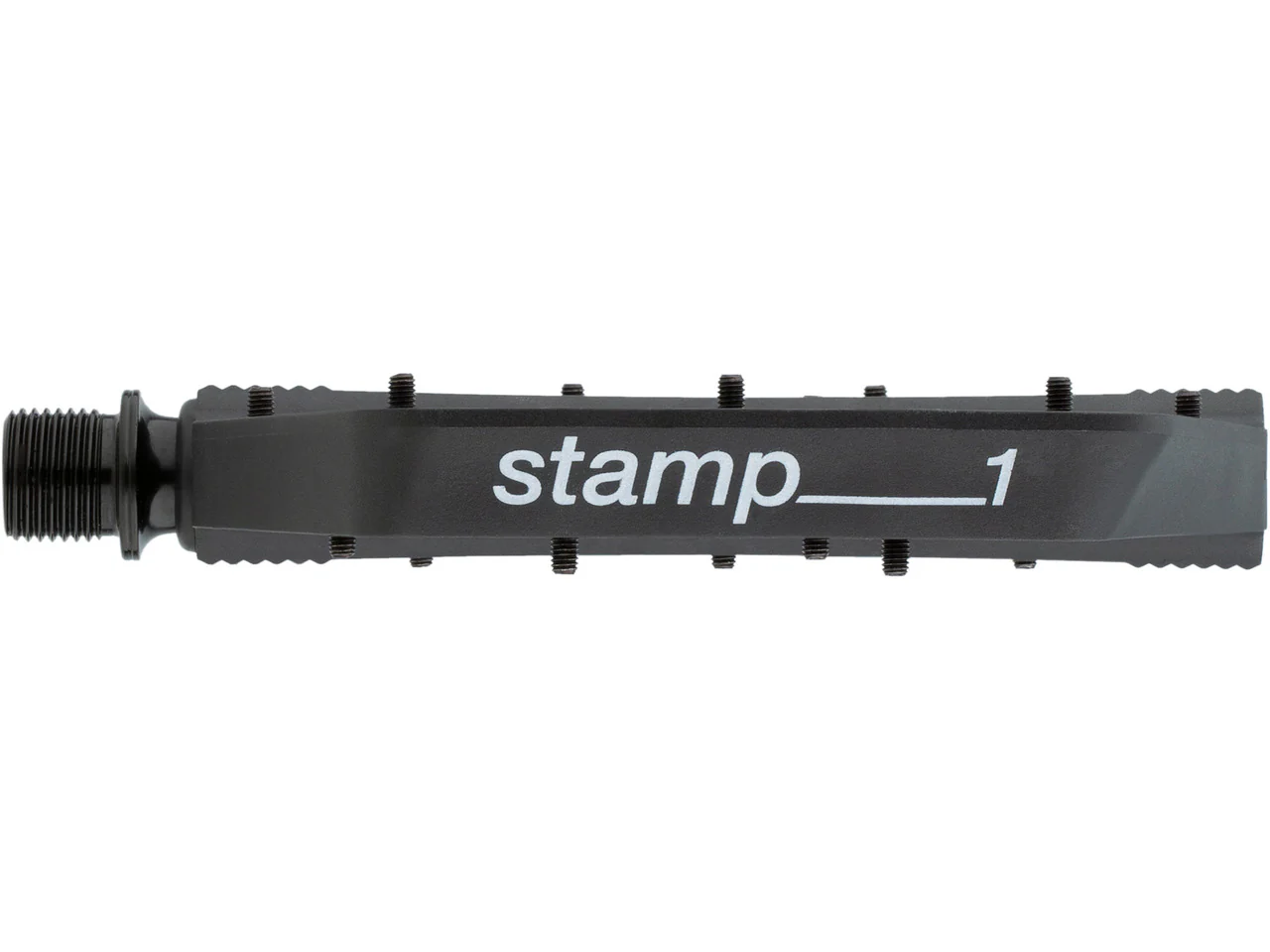

Crankbrothers Stamp 1 Platform Pedals S - M, M - L
Different bikers have different feet, and therefore there should be different pedal sizes. Crankbrothers has analysed the outsole profiles of the top MTB shoe brands and identified two specific surface areas where the shoe/pedal interface can be optimised for any shoe size. The Stamp 1 platform pedal takes this research into account. It is available in two different sizes, which are optimally adapted to different shoe sizes. This maximizes the grip and hold of the foot on the pedal. Furthermore, the Stamp 1 does not weigh more than absolutely necessary and the risk of getting stuck on stones is reduced.
Type: platform pedals
Axle Material: steel (scm435 CrMo)
Bearings: Igus LL bushings (inner), Enduro cartdige (outer)
Height: 13 mm (without pin height)
Dimensions (L x W): 100 x 100 mm (small), 114 x 111 mm (large)
Number of Pins per Pedal: 18
Specifications:
Application: All Mountain, Enduro, DownhillType: platform pedals
Technical Information:
Body Material: Composite materialAxle Material: steel (scm435 CrMo)
Bearings: Igus LL bushings (inner), Enduro cartdige (outer)
Height: 13 mm (without pin height)
Dimensions (L x W): 100 x 100 mm (small), 114 x 111 mm (large)
Number of Pins per Pedal: 18
Features:
- level code 1 (= entry level)
- two sizes for optimal adjustment to your shoe size
- forged steel axle
- premium bearings
- double sealed
- 9 hexagonal pins per side, screwed in from behind
- no rider weight limit
Dimensions (L x W): 114 x 111 mm
Size (choose variant)
- Small: 100mm x 100mm — recommended for shoe sizes 5-10 (US) // 37-43 (EU)
- Large: 114mm x 111mm — recommended for shoe sizes 10-15 (US) // 43-49 (EU)
Color
- black
Weight (manufacturer information)
- 299g (pair / small)
- 329g (pair / large)
Contents:
- 1 x pair crankbrothers Stamp 1 platform pedalsWeight:
- black/large: 329 g (Paar)
Select Size
From $24.12
Original: $68.91
-65%Crankbrothers Stamp 1 Platform Pedals S - M, M - L—
$68.91
$24.12Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Different bikers have different feet, and therefore there should be different pedal sizes. Crankbrothers has analysed the outsole profiles of the top MTB shoe brands and identified two specific surface areas where the shoe/pedal interface can be optimised for any shoe size. The Stamp 1 platform pedal takes this research into account. It is available in two different sizes, which are optimally adapted to different shoe sizes. This maximizes the grip and hold of the foot on the pedal. Furthermore, the Stamp 1 does not weigh more than absolutely necessary and the risk of getting stuck on stones is reduced.
Type: platform pedals
Axle Material: steel (scm435 CrMo)
Bearings: Igus LL bushings (inner), Enduro cartdige (outer)
Height: 13 mm (without pin height)
Dimensions (L x W): 100 x 100 mm (small), 114 x 111 mm (large)
Number of Pins per Pedal: 18
Specifications:
Application: All Mountain, Enduro, DownhillType: platform pedals
Technical Information:
Body Material: Composite materialAxle Material: steel (scm435 CrMo)
Bearings: Igus LL bushings (inner), Enduro cartdige (outer)
Height: 13 mm (without pin height)
Dimensions (L x W): 100 x 100 mm (small), 114 x 111 mm (large)
Number of Pins per Pedal: 18
Features:
- level code 1 (= entry level)
- two sizes for optimal adjustment to your shoe size
- forged steel axle
- premium bearings
- double sealed
- 9 hexagonal pins per side, screwed in from behind
- no rider weight limit
Dimensions (L x W): 114 x 111 mm
Size (choose variant)
- Small: 100mm x 100mm — recommended for shoe sizes 5-10 (US) // 37-43 (EU)
- Large: 114mm x 111mm — recommended for shoe sizes 10-15 (US) // 43-49 (EU)
Color
- black
Weight (manufacturer information)
- 299g (pair / small)
- 329g (pair / large)
Contents:
- 1 x pair crankbrothers Stamp 1 platform pedalsWeight:
- black/large: 329 g (Paar)
